PVDF aluminium Composite Panel

The PVDF aluminium composite panel consists of two sheets of corrosion resistant aluminium permanently bonded to polyethylene core material. The front aluminium coats PVDF (Fluor resin) paint. Because of its excellent weather proof and other features, this aluminium composite material becomes a very popular cladding material in the world.

Specifications of PVDF Coating Aluminium Composite Panel

PVDF Coating

Conventional fluorocarbon is made of KYNAR500 fluorocarbon and is solidified into film formation on the surface after three coats and three bake. The superior quality coating provides the aluminium composite panel with good acid and alkali resistance, and allows the panel to stand the test of severe environment. So, PVDF coated ACP has no abnormal depigment within 15 to 20 years, which is more applicable for exterior decoration of architectures and curtain wall decoration of major constructional projects that have high demand for weather resistance.

Feature

Advantages of PVDF aluminium composite coating include light weight, high strength, extreme rigidity, superior impact resistance, excellent surface flatness and smoothness, heat insulation, sound insulation, fire-resistance, acid-resistance, alkali-resistance, good weatherproofing and non-resonance, various uniform colors, and more. Meanwhile, this construction material can be easily processed, fabricated and quickly installed. It is also elegant and magnificent, and comes with good flexibility, easy maintenance and simple cleaning. It fits various designs.

Application

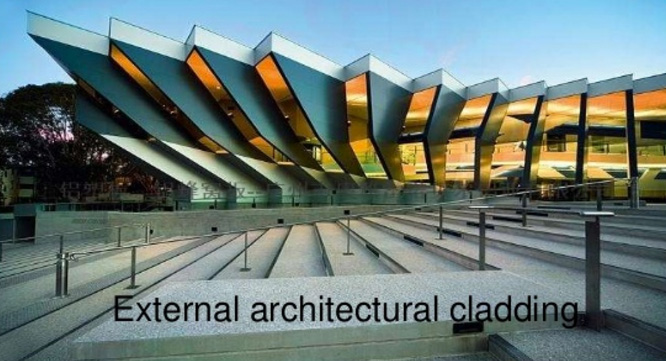

1) Constructional exterior curtain walls
2) Decorative renovation for storey-added old buildings
3) Advertisement board, shop face decorating, display platforms and signboards
4) Wallboard and ceilings for tunnels; Circular columns for outside use
5) The PVDF aluminium composite panel is also an ideal raw material for industrial purpose
